Laser Adapters

Your order may be delayed while we work out the kinks on the online ordering/shipping or due to we just ran out of stock.

If you are trying to order from outside of the United States, please use the contact us link above and tell us which adapter you want along with your shipping address.  We will then email you back with the cost, if you want to continue with ordering, reply back that you wish to continue ordering and we will send you an invoice through PayPal for your order.  Once it is paid, we will prep and ship your order.  All dollar amounts shown are in U.S. funds.


We now make and sell aluminum adapters for the "K40" laser cutter/engraver as well as the bigger 50W-100W versions and the ULS Laser VLS/PLS Platform

These adapters are for using the Cloudray compound lens as shown below.

We do not sell the compound lens, it is available on Amazon, Cloudray.com or other online shopping places.  You will only get the adapter to allow this compound head to be mounted to your laser.

We cannot test every adapter to ensure 100% fitment as we cannot stock and sell the compound nozzles and the heads shown below, at this time.  We have tried to make any adjustments to compensate for any fitment issues but your adapter still may have a snug/loose fit onto your head style.  We will not be held liable for any damages that may occur while installing or using our adapter on your laser.  If you run into problems installing the adapters please use the Contact us link above and explain in detail the issue you are having, please put in subject line 'Laser Adapter Help'.  The best way to get in touch with us is to send us a message on our Facebook page here: Empire Welding Facebook Page.  We will try our best to help you but we may be slow to respond if we get a bunch of requests.

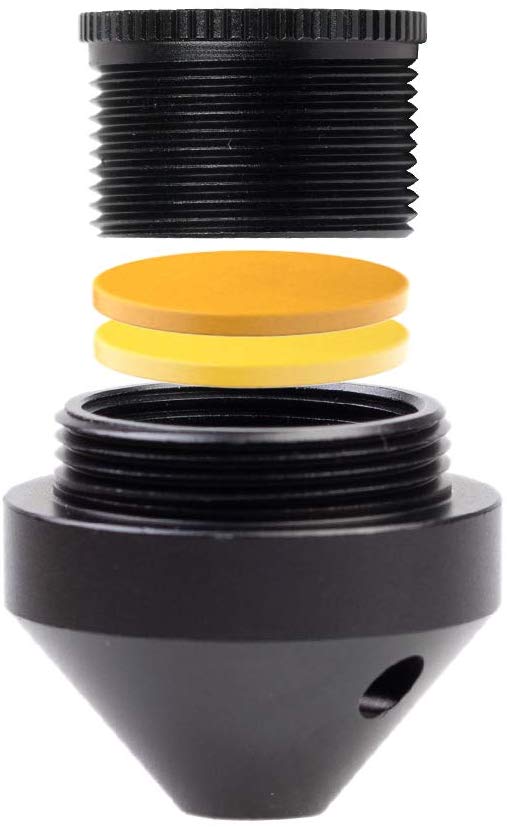

Cloudray Compound Lens

Cloudray Compound Nozzle Set

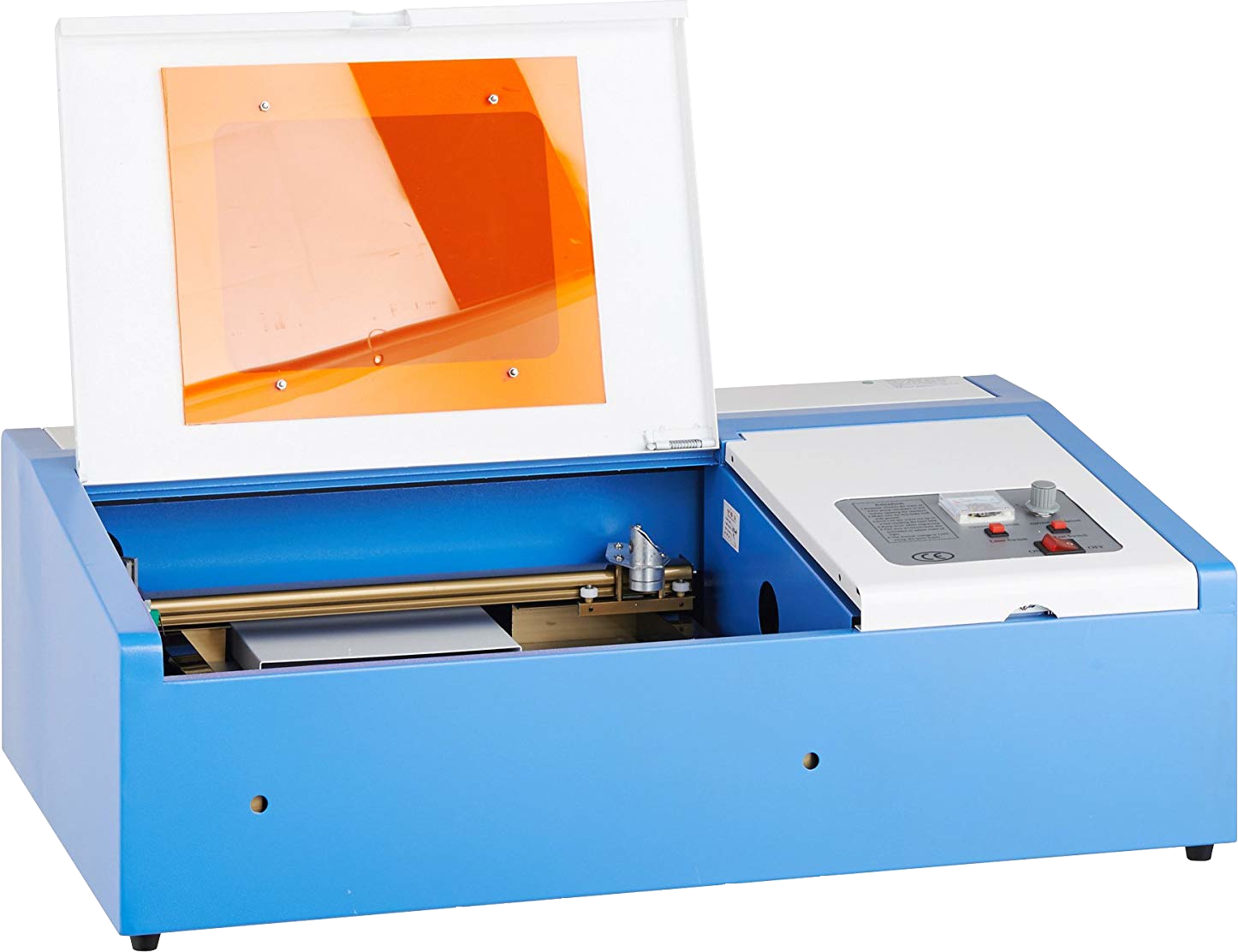

K40 Laser Cutter/Engraver

K40 Style Laser

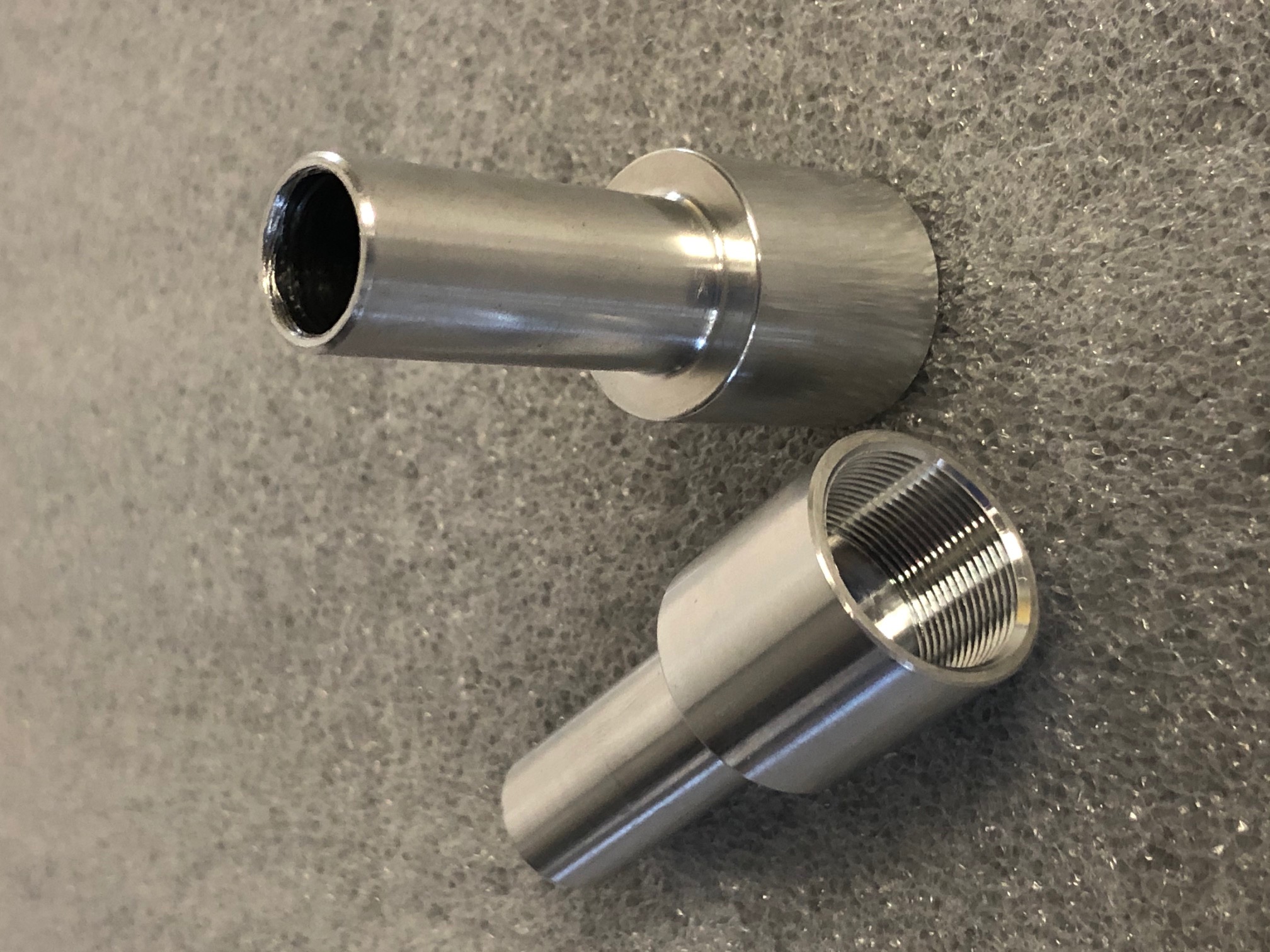

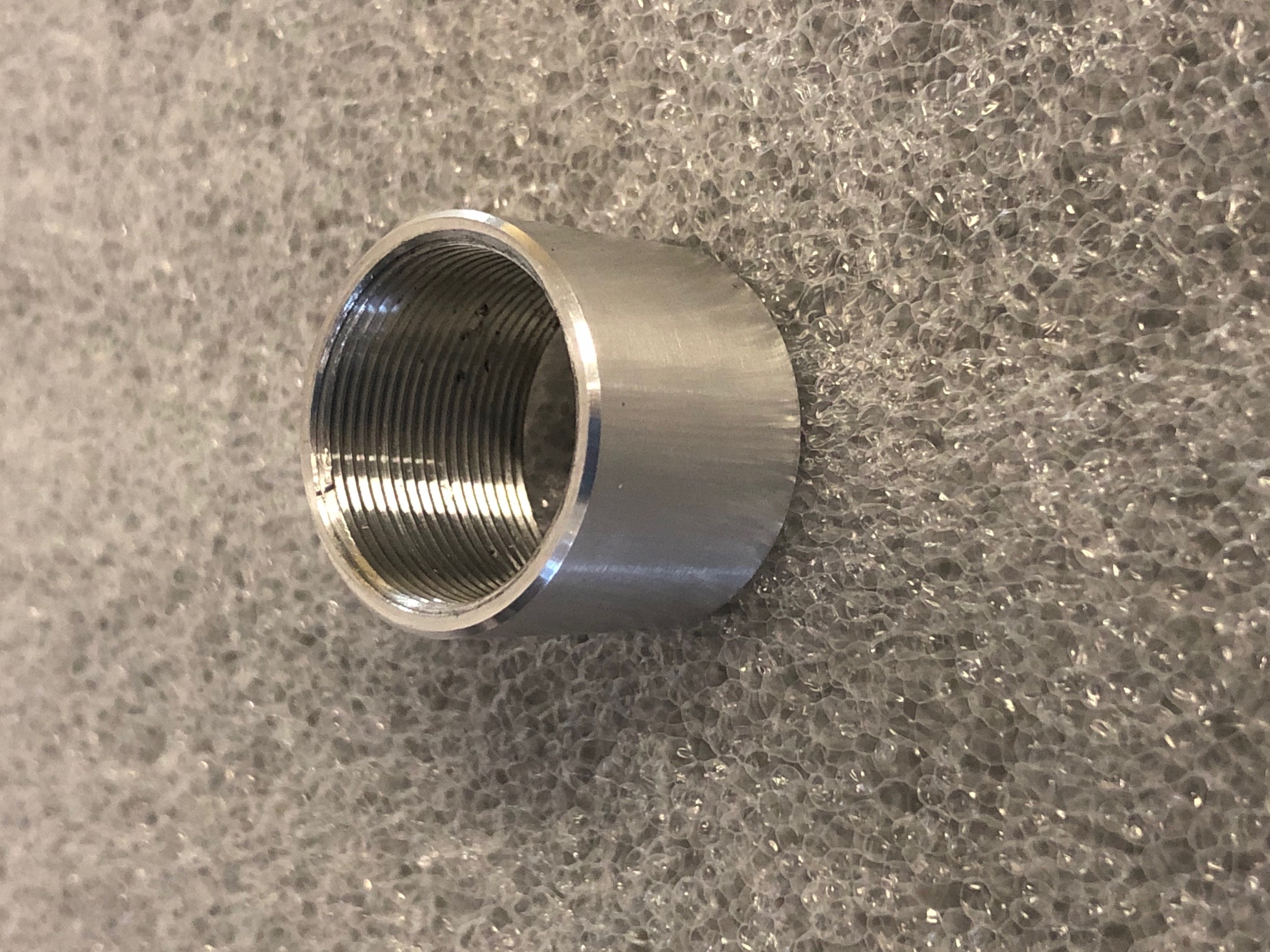

K-40 Adapter

K40 Adapter



This adapter is made to fit the stock K40 laser head as shown below.  (Due to varying tolerances on china made machines this adapter may seem loose fitting but it just needs to be snugly tightened, do not overtighten as you may strip out the threads)

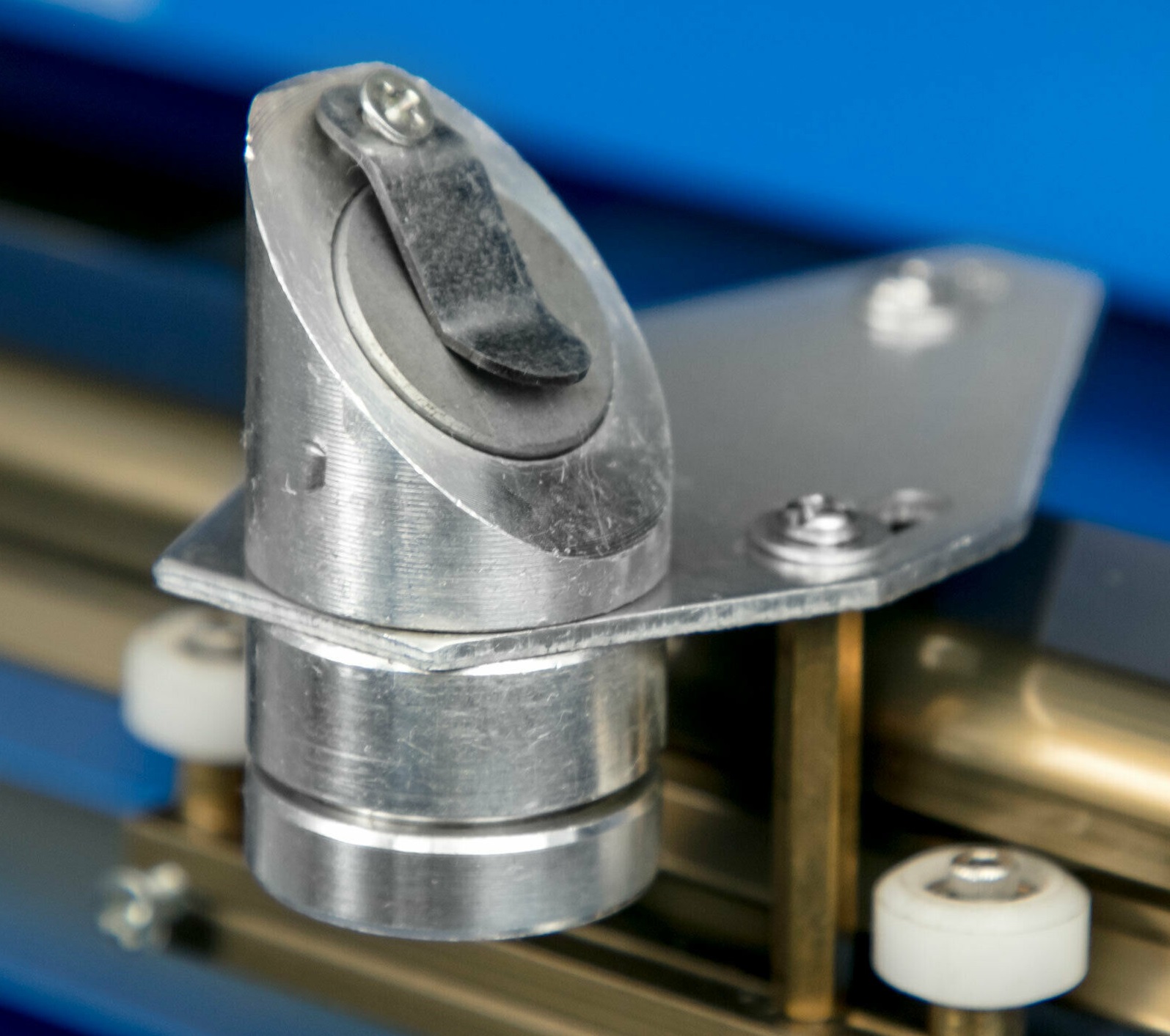

K40 Stock Head

Stock K40 Head

K40 Stock Head Adapter - $15.00 + S&H

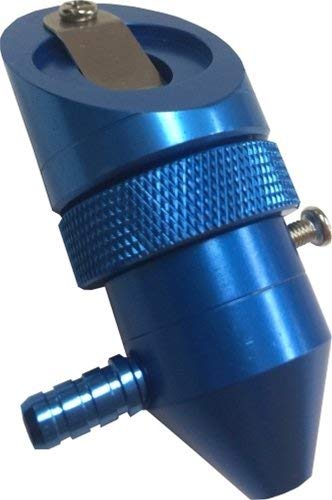

K40 - Light Object Head (Blue)

This adapter is made to fit the K40 head from Light Object - This adapter is machined to fit well on this head as the tolerances used to manufacture the head appear to be better than the stock head.

Light Object Head

K40 Light Object Head Adapter $15.00 + S&H


50W - 100W Versions

We have a stock length adapter available for these machines that measures 2-1/2 in. long.  Stock tubes may be longer than this.  As said above for the "K40" adapters, we try to make these fit as best as we can as we cannot have:

  1.  Every available machine at our disposal to measure & test adapters.
  2. We do not stock the compound lens adapter to test fit our adapters to and sell a complete adapter to you at this time.

If you run into problems installing the adapters please use the Contact us link above and explain in detail the issue you are having, please put in subject line 'Laser Adapter Help'.  We will try our best to help you but we may be slow to respond if we get a bunch of requests.

It is best for you to measure your current head tube on your laser to make sure these adapters will fit.  We have at our facility the 50W Blue & White machine, so the following images are pictures of the stock head tube and the dimensions of this tube.  Your tube will need to match these dimensions except for the overall length of the tube in order to use these adapter tubes.  It is recommended that you keep your stock tube/lens configuration and have the adapter tube from us so it will accommodate switching over easily by swapping out the tube assembly. (Custom tubes will be priced accordingly depending on any changes required, use the 'Contact Us' link at the top of the page so we can discuss your needs)

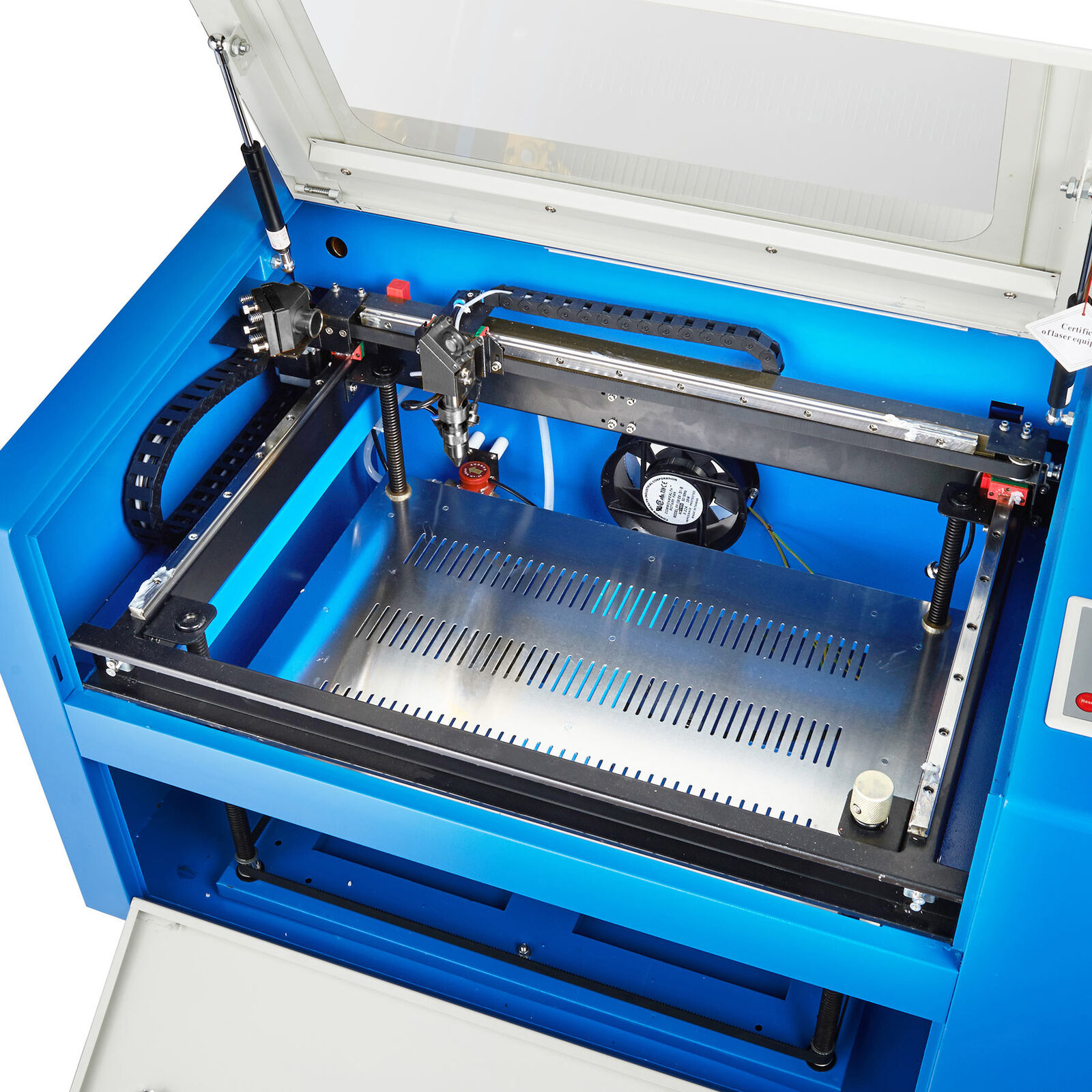

50W Blue & White Stock Head Tube
50W Blue & White KH-5030 Model Stock Head Tube

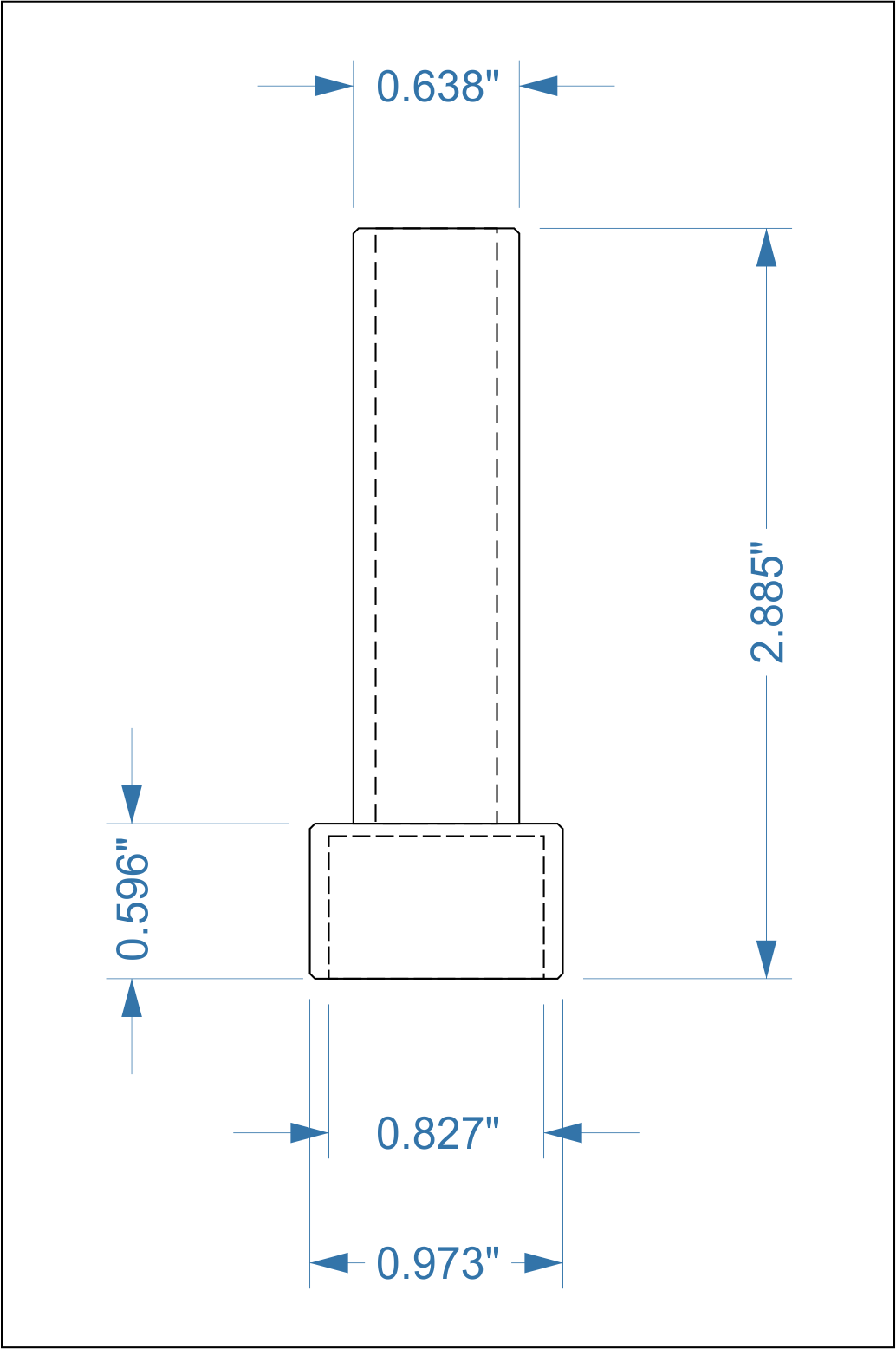

50W Stock Head Dimensions
50W KH-5030 Stk Head Tube Dimensions - Click For Larger Image

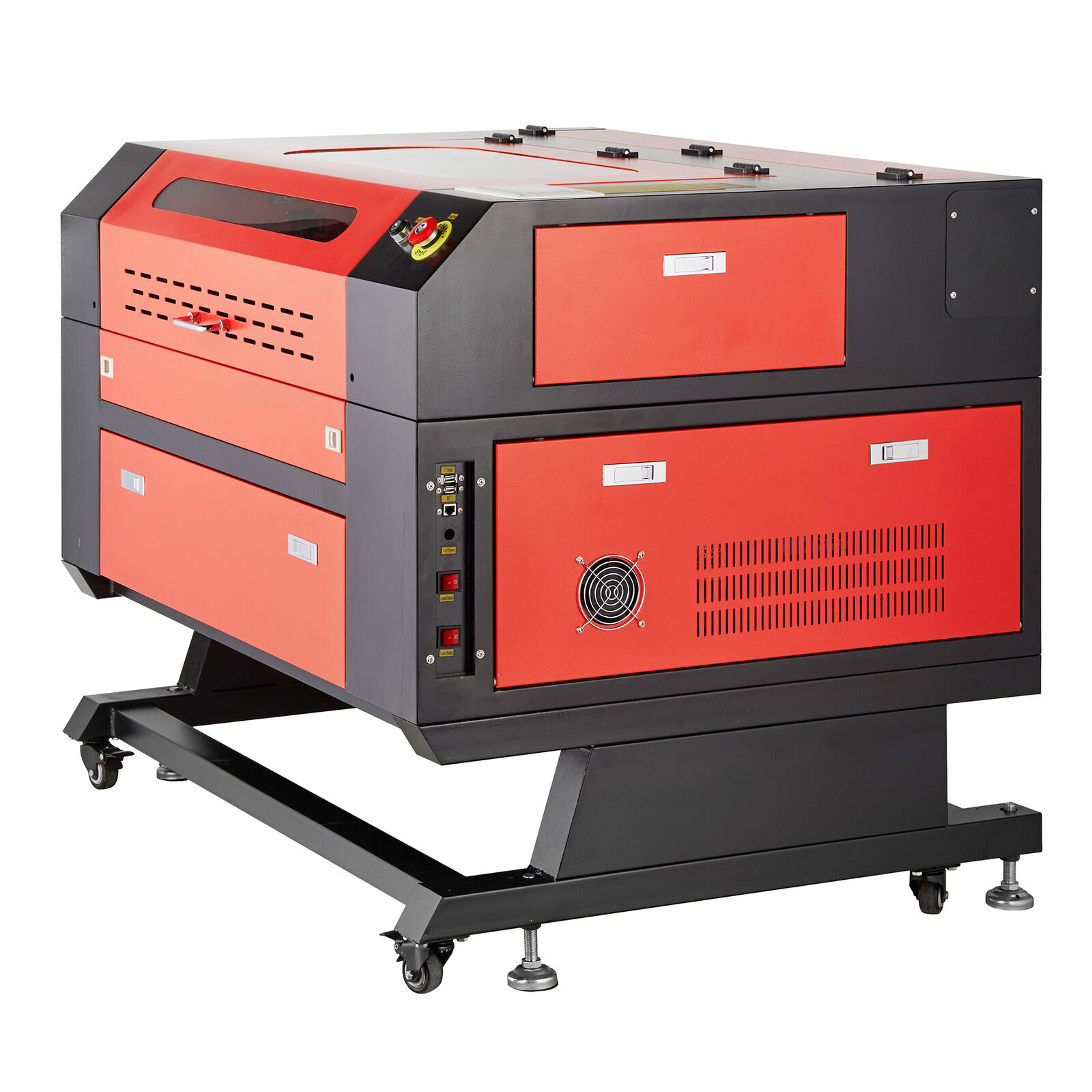

50-100W Machine Variations

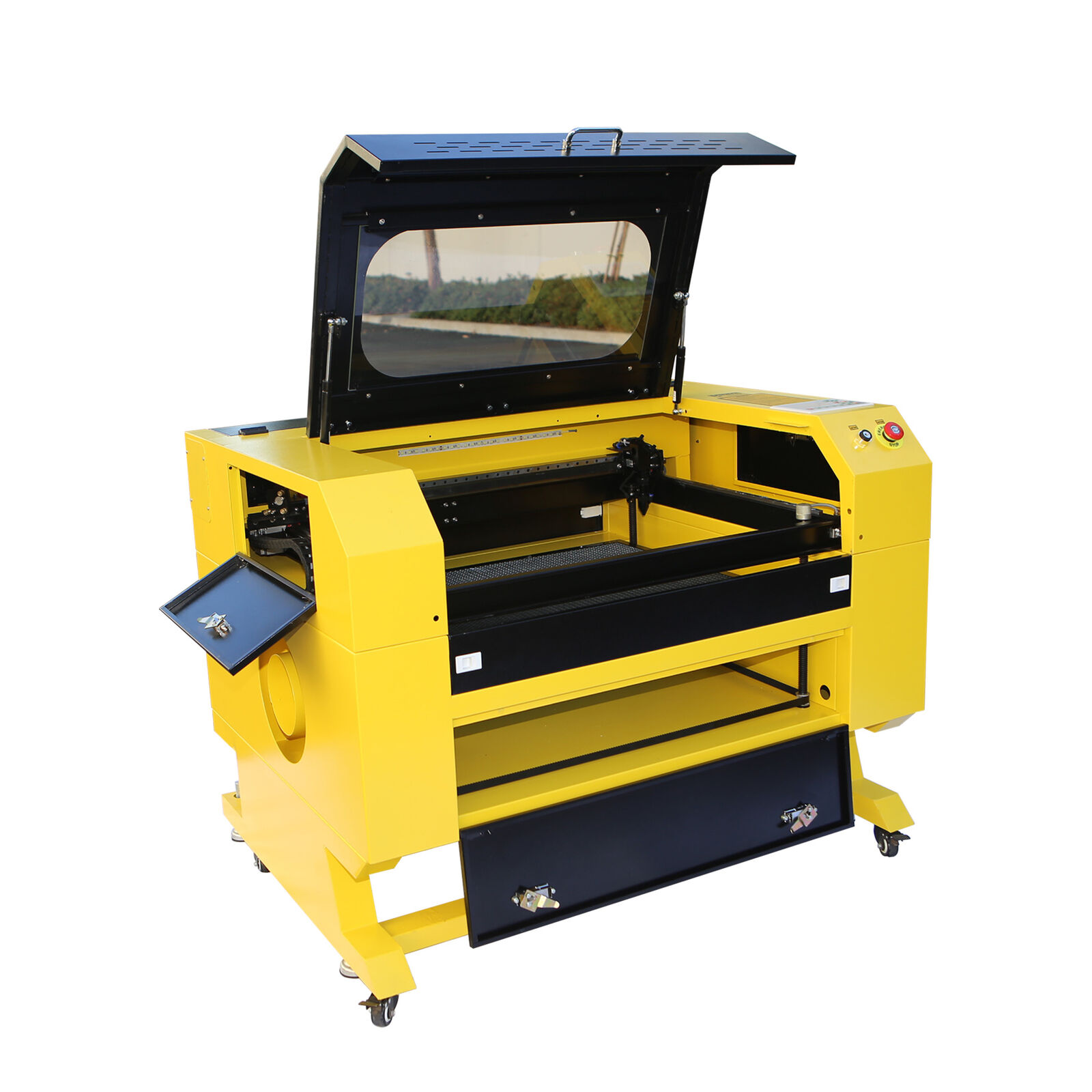

50W Blue & White KH-5030 Model 60W Red & Black 60W Yellow & Black 80W Red & Black
50W Blue & White 60W Red and Black 60W Yellow & Black 80W Red and Black

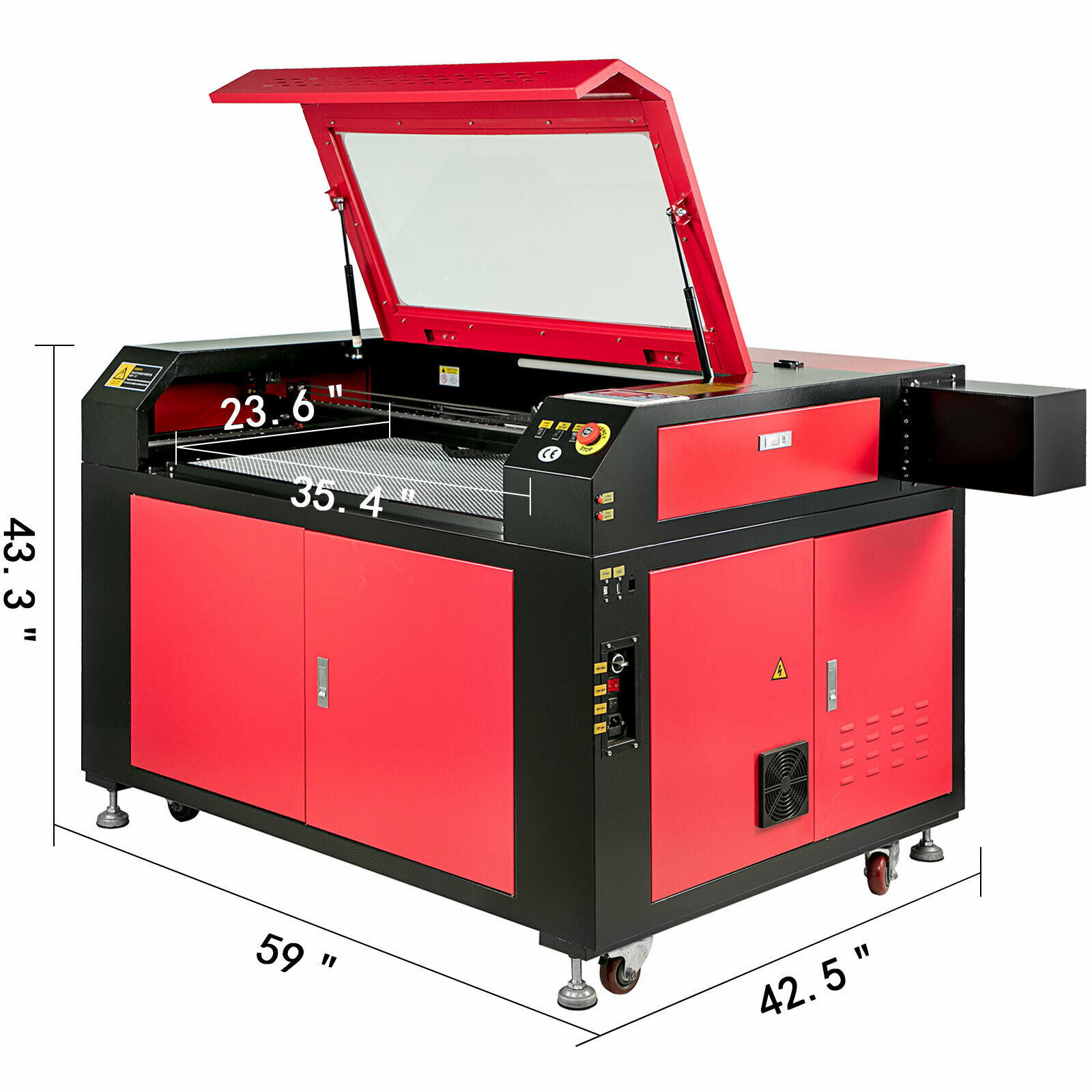

100W Red & Black
100W Red & Black

Reminder:

We cannot test every adapter to ensure 100% fitment as we cannot stock and sell the compound nozzles and the heads shown below, at this time.  We have tried to make any adjustments to compensate for any fitment issues but your adapter still may have a snug/loose fit onto your head style.  We will not be held liable for any damages that may occur while installing or using our adapter on your laser.  If you run into problems installing the adapters please use the Contact us link above and explain in detail the issue you are having, please put in subject line 'Laser Adapter Help'.  The best way to get in touch with us is to send us a message on our Facebook page here: Empire Welding Facebook Page.  We will try our best to help you but we may be slow to respond if we get a bunch of requests.

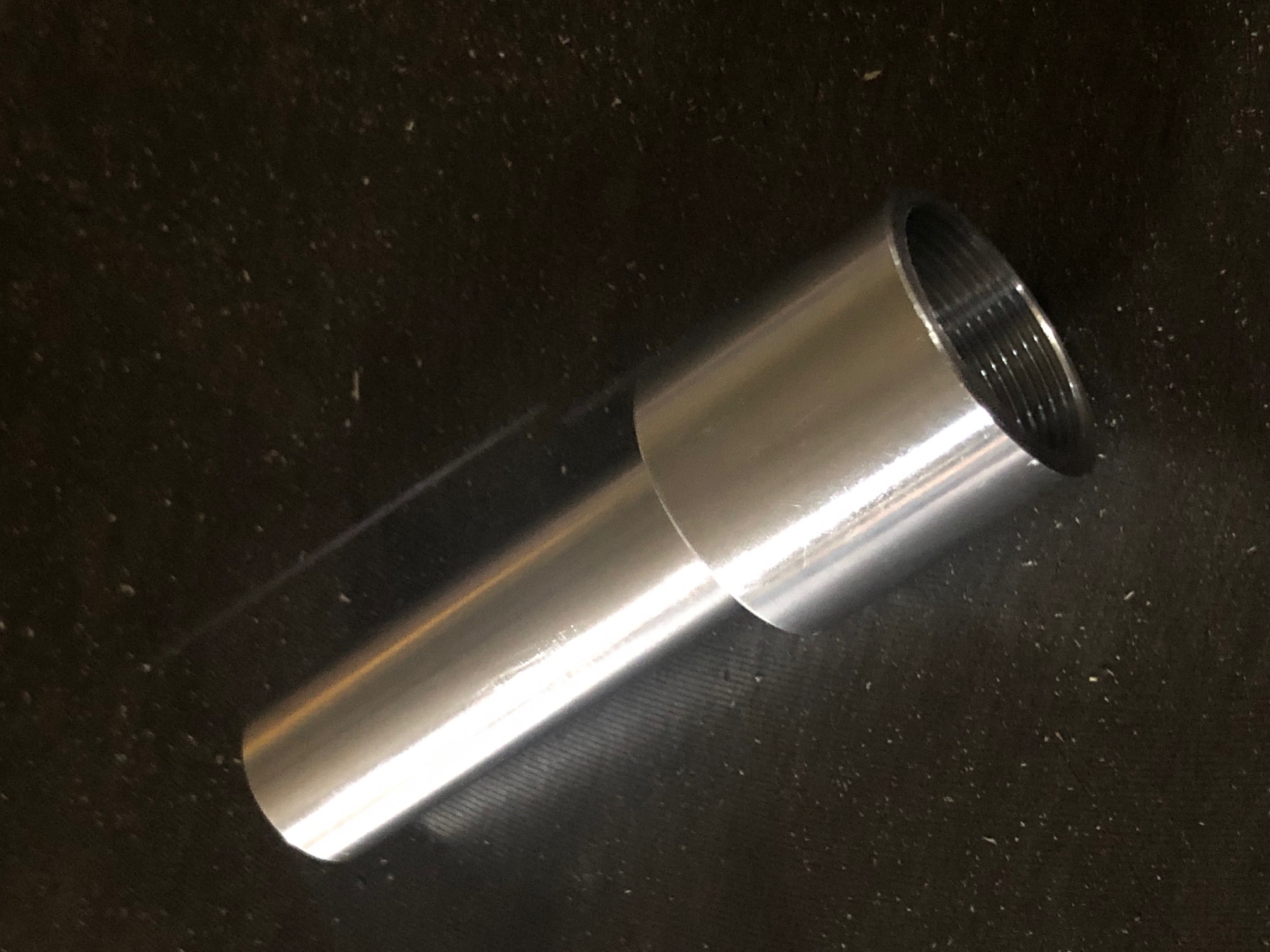

2-1/2" Long Adapter 3" Long Tube 4" Long Tube

50W-100W 2-1/2" Long Adapter
$15.00 + S&H

50W-100W 3" Long Adapter
$20.00 + S&H

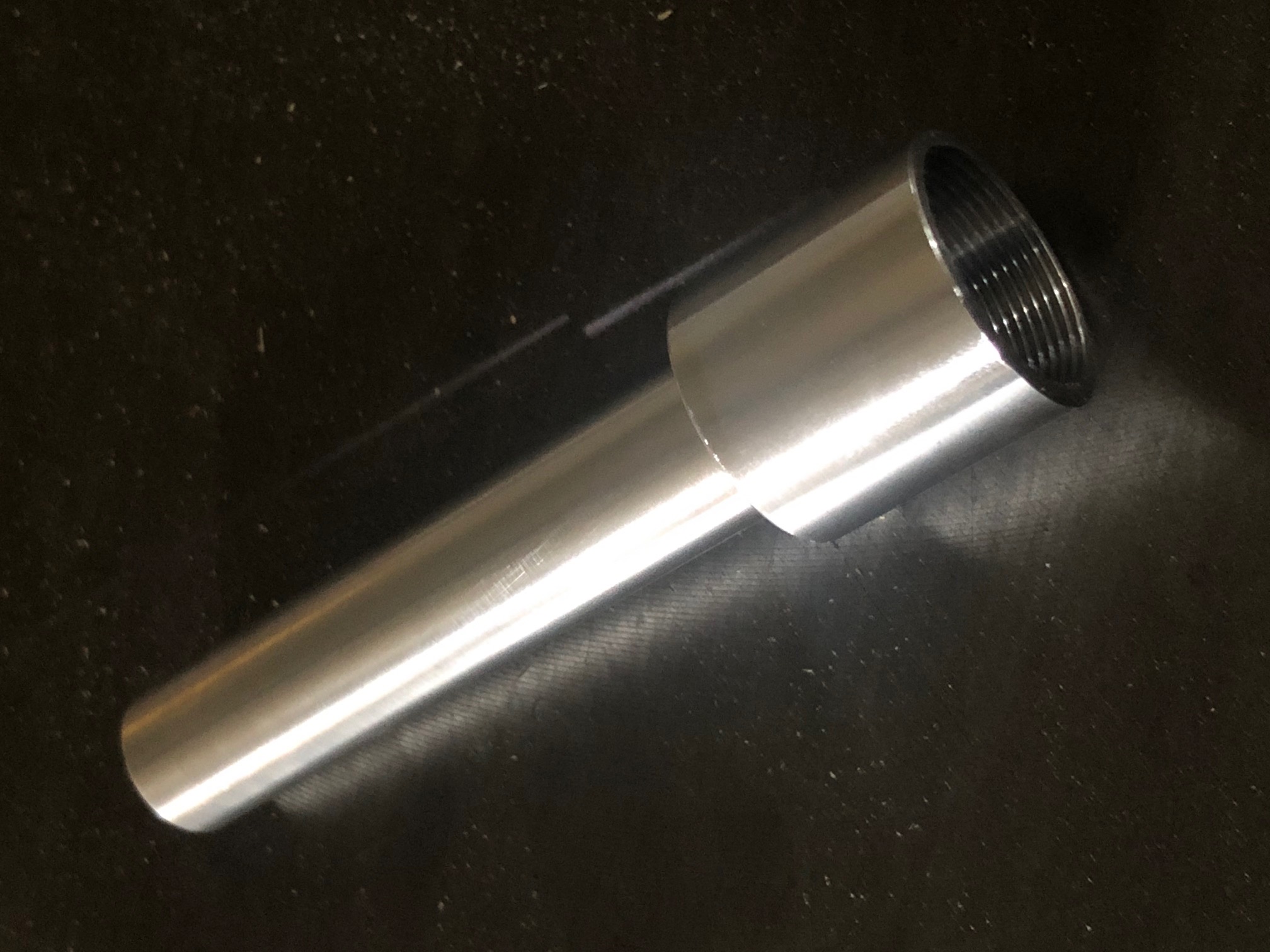

50W-100W 4" Long Adapter
$30.00 + S&H




ULS Compound Head Adapter

We now have the adapter kit available for the ULS Laser VLS/PLS Platforms.

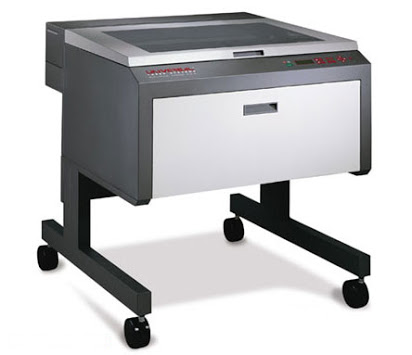

ULS Laser M-300
ULS M-300

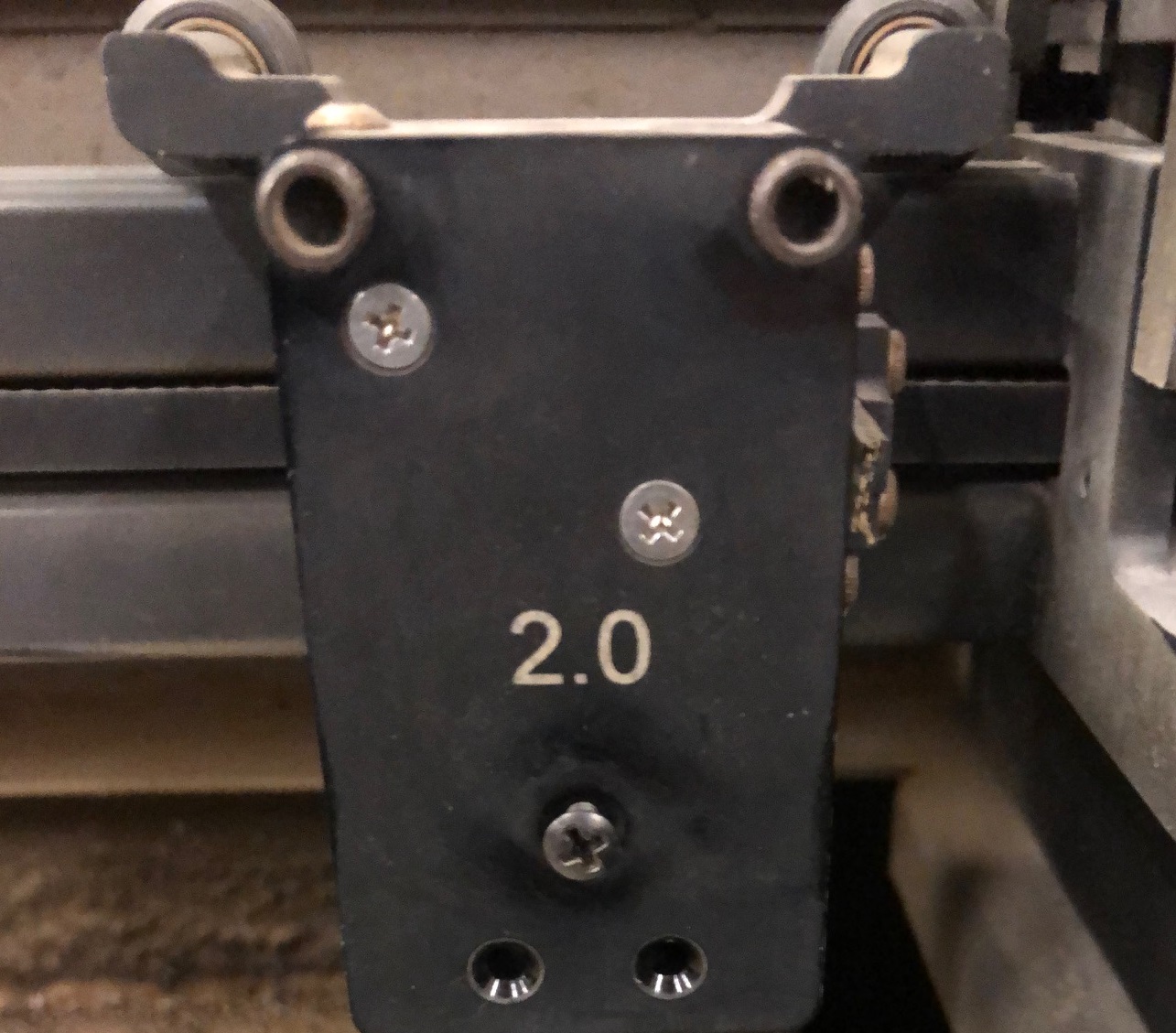

ULS Laser Head
ULS Laser Stock Head - This style head should be the same on the VLS/PLS platforms. The M-300 machine was used to make the adapter kit.

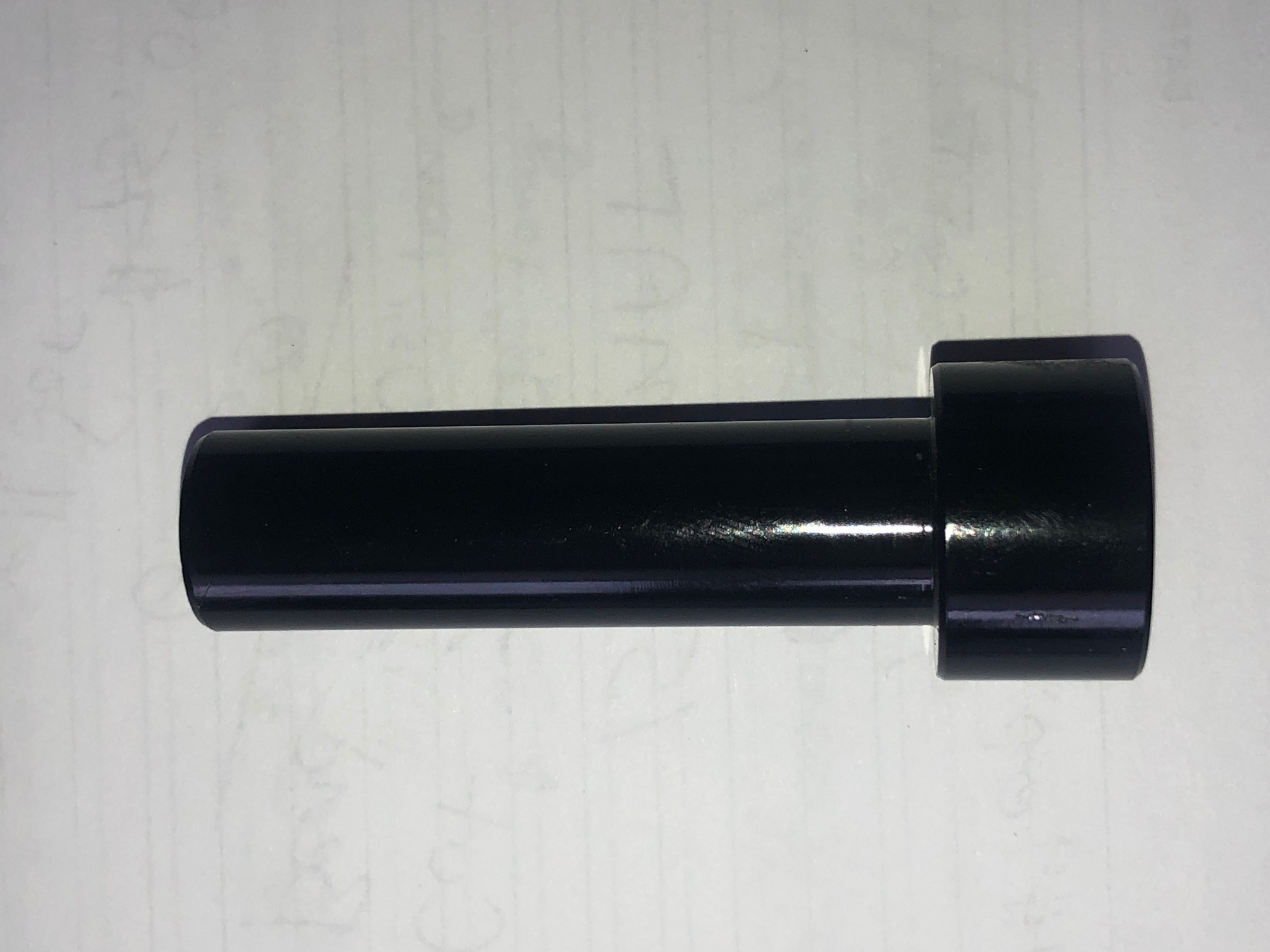

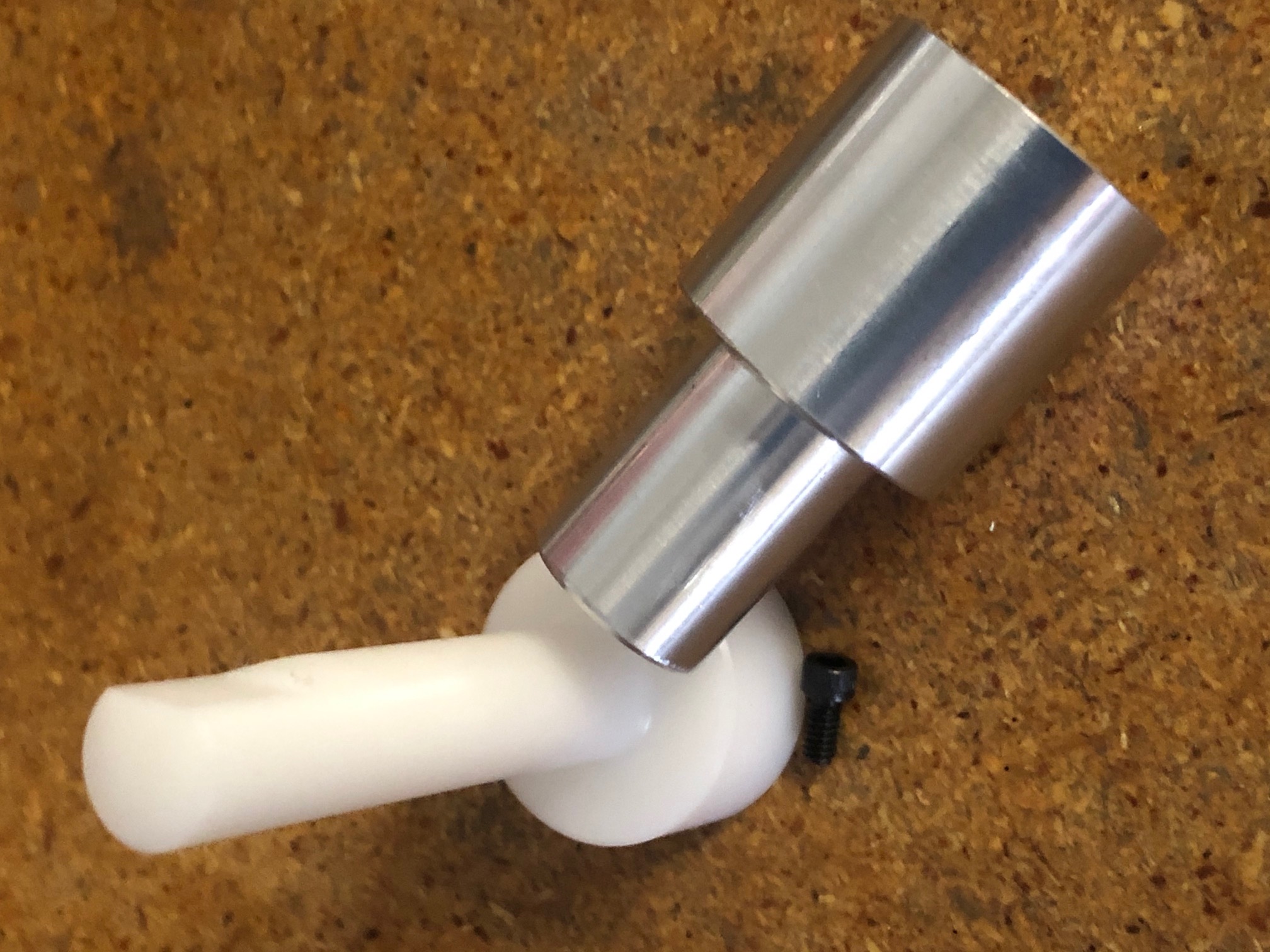

ULS Adapter Kit
ULS Adapter Kit - Fits Stock Head



The kit includes 1 - Adapter Tube, 1 - Height Gauge and a 4-40 Screw for way less than the HPDFO lens from ULS and be able to do the same thing as the HPDFO lens.  We have seen the HPDFO kit going for $850 to $995.00 on E-Bay.  We do not know what it is direct from ULS but ours will still be cheaper than them and cheaper than a stock replacement focusing lens.

This kit is simple to install and will come with instructions on how to install this adapter kit onto your machine.

Here are a few examples of the results of using the compound head on your ULS Laser:

Eagle On Oak Eagle On Aluminum Text on Aluminum

These images were not 100% with the correct speeds and power.  They were a quick test of the adapter and lens setup and the actual items quality is a lot better than what is shown in the images above.  The text in the far right image, the smallest one is 0.021 inches tall and the largest is 0.103 inches tall.

ULS Laser Adapter Kit - $95.00 + S&H
